LDAP Configuration

Overview

Zycoo IPPBX is built on the Asterisk platform and supports the standard SIP protocol. It can connect to IMS SIP trunks from ITSPs (Internet Telephony Service Providers) as well as SIP endpoints.

This document provides instructions for syncing contacts from the IPPBX via LDAP.

LDAP Setup Guide

1. LDAP Server Settings

Step 1.1: Log in to the IPPBX Web Portal

Log in to the IPPBX web interface using the admin account.

Step 1.2: Navigate to Phonebook Settings

1. Navigate to Telephony → Advanced Features → Phonebook

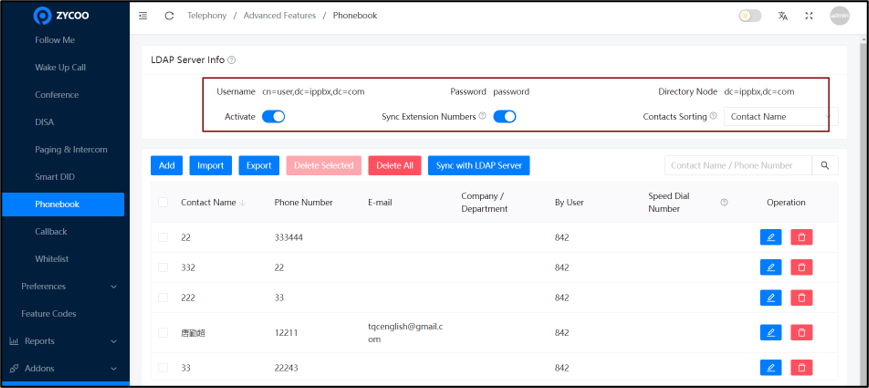

Step 1.3: Configure LDAP Server Credentials

Configure the following LDAP parameters:

Step 1.4: Sync Extensions Automatically

Important Note: If you enable the "Sync Extensions Numbers" option, please do not manually add extension numbers to the phonebook. The extensions will be automatically loaded into the LDAP configuration.

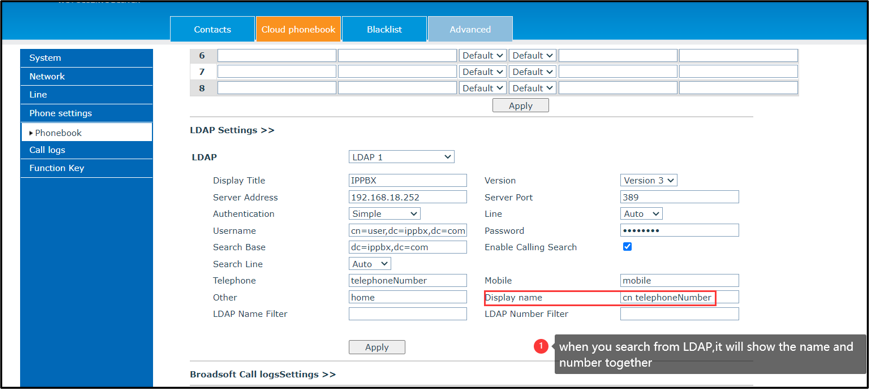

2. LDAP Configuration on Zycoo IP Phone

For Zycoo IP phones, configure the LDAP settings according to the parameters provided above.

LDAP Configuration Parameters for IP Phones

Note: For other phone brands, the configuration principles remain the same. Please refer to the phone's user manual for specific LDAP configuration instructions. Ensure that the Base DN, Username, and Password fields are correctly entered.

3. Displaying Extension Departments in LDAP

If you wish to show the extension department information in the LDAP directory, please follow these steps:

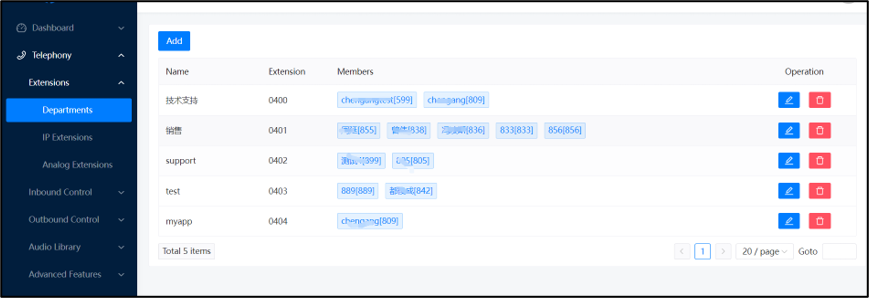

Step 3.1: Assign Departments to Extensions

On the IPPBX, assign a department to each extension number that should display department information.

Step 3.2: Refresh LDAP Data

1. Navigate back to Telephony → Advanced Features → Phonebook

2. Disable the LDAP service

3. Enable the LDAP service again

4. Trigger a sync data operation

Step 3.3: Verify Department Display

Once the LDAP data has been refreshed, the department information will appear in the LDAP directory if your IP phone supports the LDAP list mode.
