One Extension with One Line

Overview

Zycoo IPPBX is built on the Asterisk platform and supports the standard SIP protocol. It can connect to IMS SIP trunks from ITSPs (Internet Telephony Service Providers) as well as SIP endpoints.

This document provides instructions for binding an extension to a specific trunk (port), ensuring that calls from that extension are routed through a designated line.

Binding Extension with Trunk Setup Guide

Prerequisites

1. Verify Dial Rules (DialOut)

Step 1.1: Log in to the IPPBX Web Portal

Log in to the IPPBX web interface using the admin account.

Step 1.2: Navigate to Dial Rules

1. Navigate to Telephony → Outbound Control → Dial Rules

Step 1.3: Verify DialOut Configuration

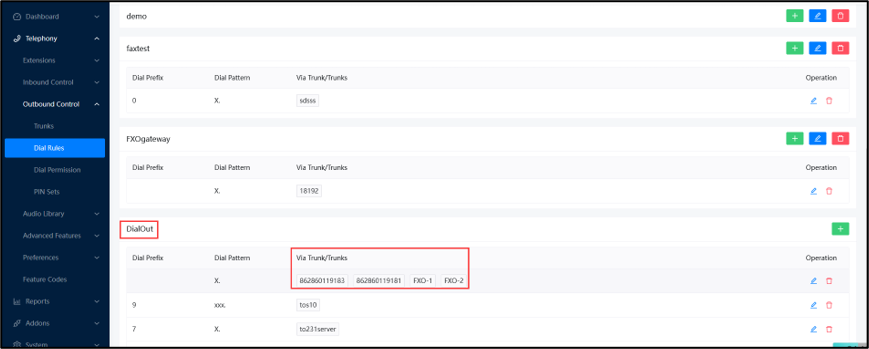

Ensure that DialOut includes at least one trunk in the Dial Pattern X. (which matches any outbound number).

Note: The X. dial pattern is a wildcard that matches any dialed number (one or more digits).

2. Bind Extension with Trunk

Step 2.1: Navigate to IP Extensions

1. Navigate to Telephony → Extensions → IP Extensions

Step 2.2: Configure the Extension

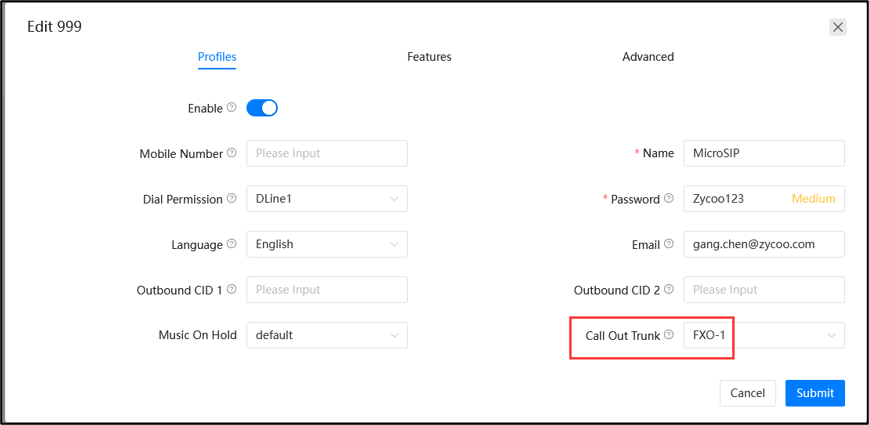

Click the Edit button for the target extension (e.g., extension 999), then configure the following:

Step 2.3: Submit Configuration

Click Submit to save the configuration.

Result: Extension 999 will now make outbound calls through the FXO-1 Port.

3. Configure Incoming Calls

Step 3.1: Navigate to Inbound Routes

1. Navigate to Telephony → Inbound Control → Inbound Routes

Step 3.2: Configure the Inbound Route for FXO-1

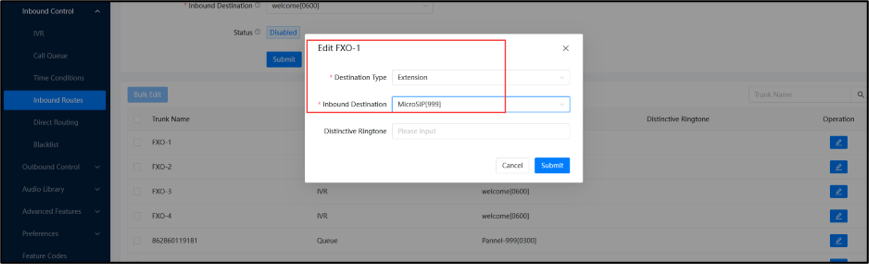

Click the Edit button for the FXO-1 trunk in the Trunk Name column, then configure the following:

Step 3.3: Submit Configuration

Click Submit to save the inbound route configuration.

Result: Incoming calls on the FXO-1 Port will be routed directly to Extension 999.

Configuration Summary

Feature Requirements
