WebRTC Application

Overview

Zycoo IPPBX is built on the Asterisk platform and supports the standard SIP protocol. It can connect to IMS SIP trunks from ITSPs (Internet Telephony Service Providers) as well as SIP endpoints.

This document provides instructions for WebRTC applications, including login and call functionalities.

Notice

Before proceeding, please ensure the following requirements are met:

1. Use the Chrome browser to access WebRTC functionality.

2. A headset (with both microphone and speaker) must be connected to your computer.

3. The IPPBX and your computer must reside on the same local network.

WebRTC Setup Guide

Step 1: Log in to the IPPBX Web Portal

Log in to the IPPBX web interface using the admin account.

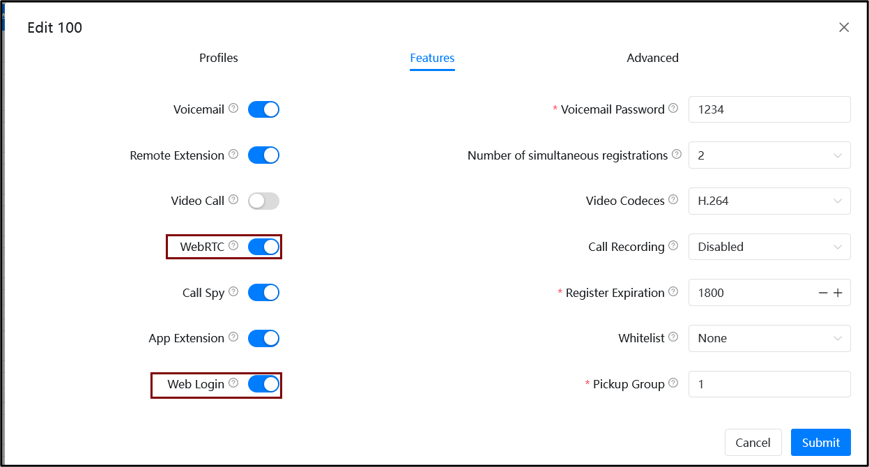

Step 2: Configure the Extension for WebRTC

1. Navigate to Telephony → Extensions → IP Extensions

2. Click the Edit button ( ) corresponding to extension 100

3. Enable both WebRTC and Web Login options

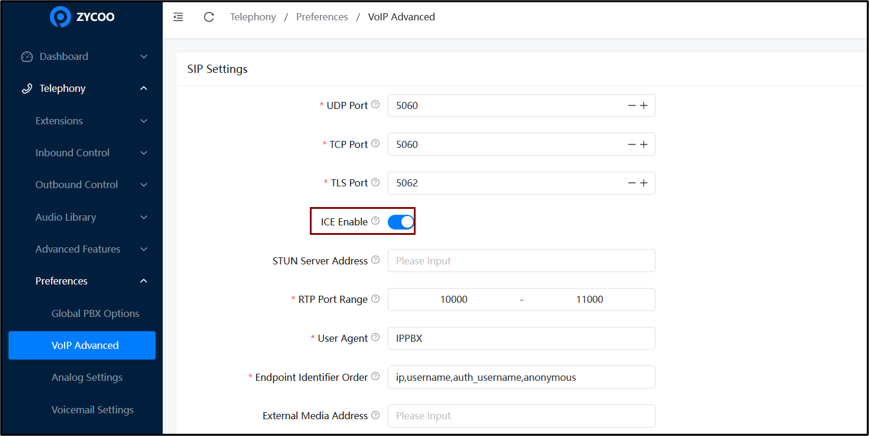

Step 3: Enable ICE

1. Navigate to Telephony → Preference → VoIP Advanced

2. Enable the ICE Enable option

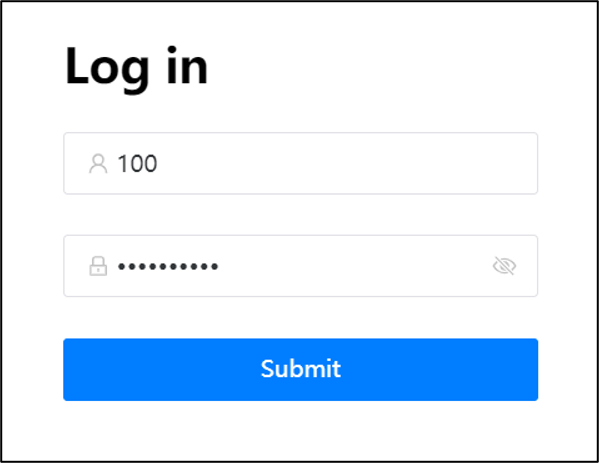

Step 4: Log in as Extension User

1. Log out from the admin user account

2. Log in again using extension 100 and its corresponding extension password


Step 5: Allow Browser Notifications

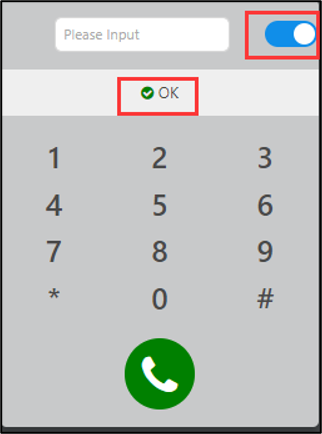

When logging in for the first time, the browser will display a pop-up window requesting permission for notifications. Please click Allow. After granting permission, the status will display as OK.

Step 6: Make a Call

Once your headset is connected, you can make outbound calls using WebRTC.
