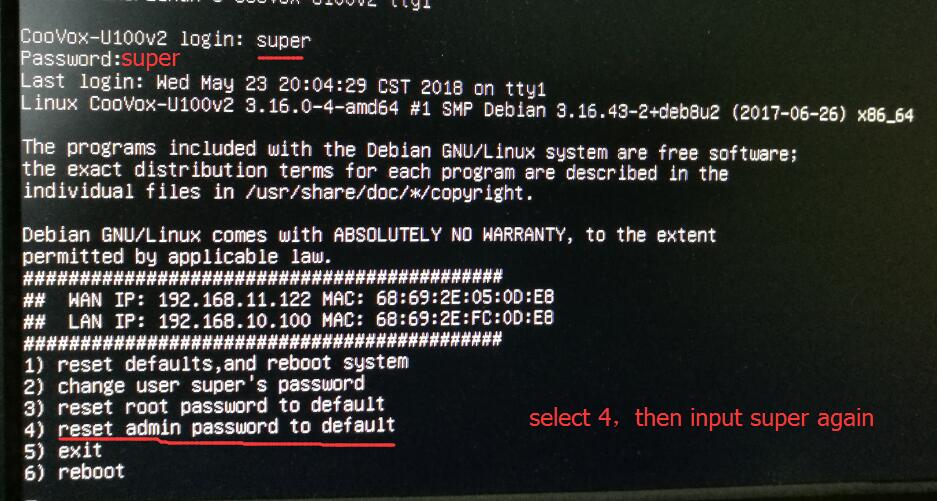

U100-U80-U60 reset application of system
- pls connect the HDMI interface to your Monitor
- pls connect the keyborad to the USB
- pls input super/super once it prompt username and password
- you can try to select option 1 to reset or other option to config,and option 4(V3 system) to reset admin password only.
- input super as password to confirm again ,then system will automatically reboot
U50V2&U20V2 reset factory
1.reset whole system,step as follow turn off device press the reset button and turn on the device,release the reset button after about 6-8s until the sys led goes on wait about 8mintues,system will bootup again smoothly if it is correct 2.reset only ...
U20-U50 Reinstall System
If you system is damage and you have to redo system.so pls follow next step Step1: 1.About v1 ,pls download the v1 image 2.About v2,pls download v2 image 3.Notice:pls dont use v1 install v2 image cause it is different hardware . you can find the SD ...
V3-ZYCOO Proxy Application
Hi pls find out the attachment,then try to refer
Console Port Connection Instruction
It is used to debug device when you forgot the ssh and GUI password or device can not boot up. Console parameter,115200 8 n 1 1. Find one cable same as cicso console line 2.Download the client putty,try to login The COM3 you can find from the ...
Please try to find out the attachment
